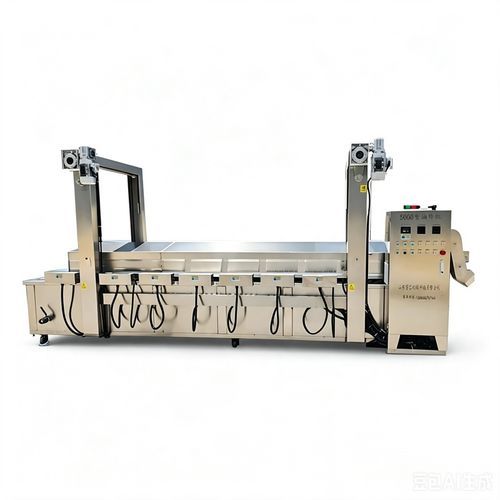

Continuous industrial fryer

deep-fatmeatfor fish

Specifications

• Overall length: 2 m – 12 m (customizable)
• Power: 24 kW – 300 kW
• Heating source: Electric heating
• Conveyor width: 600 mm or 800 mm
• Main material: SUS 304 stainless steel (food grade)
• Hoisting system: Optional electric lifting
• Conveyor: Single-layer or double-layer mesh belt
• Scraping/filtration: Optional automatic scraper and filter
• Speed control: Stepless speed regulation or inverter frequency control
• Temperature range: 0 – 300 °C (max 300 °C)
• Support equipment: Oil tank, oil filter machine

Introduction
Continuous fryer CF Series is an industrial conveyor frying system designed for high‑volume, continuous production. It uses electric heating and a mesh conveyor to transport products through a controlled oil bath, delivering consistent frying results adapted to snacks, nuts, meat and other food items.

Main components
Mesh belt conveying system, electric heating modules, PLC temperature control unit, automatic scraping and filtration assembly, oil tank and optional hoisting/lifting mechanism for maintenance.

Key technical details

• Double-layer mesh belts reduce product flotation; PTFE/Teflon-coated belts available for batter-coated products to minimize sticking.
• Precise temperature control up to 300 °C ensures repeatable results across batches.
• PLC-based control with variable speed allows continuous operation and recipe storage.
• Automatic residue removal and filtration extend oil life and reduce downtime.
• Electric lifting system simplifies belt removal for cleaning and maintenance.
• Constructed in SUS 304 stainless steel to meet food hygiene requirements.

Applications

• Nuts and snack foods: broad beans, green beans, peanuts, potato chips, french fries
• Flour-based products: dough fritters, churros and similar items
• Meat products: meat pieces, patties, chicken portions, popcorn chicken
• Aquatic products: fish fillets and coated fish products
• Soya products: tofu, fried tofu puffs
• Other: meatballs, vegetable patties, onion rings

Technical characteristics

• Customizable length and conveyor configuration for production line integration
• Energy-efficient electric heating with modular power options
• Optional accessories: oil filtration unit, oil storage tank, automatic scraper, hoisting system
• Designed for compliance with food industry hygiene and safety standards
