Ball valve AD-2

drainfor waterthreaded

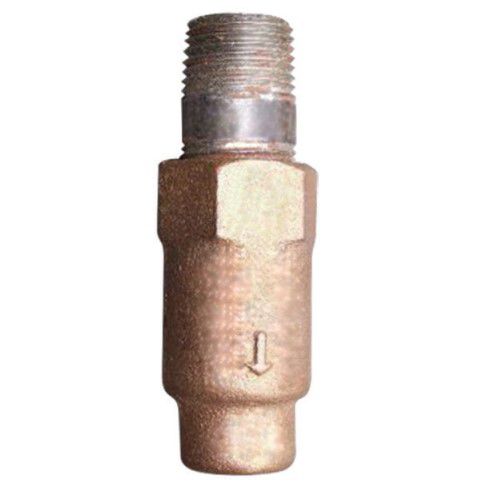

The Model AD-2 Automatic Drain Valves (Ref. Figure 1) are designed to automatically drain water from fire protection equipment supply connections that are to be maintained normally dry. The AD-2 is used to drain any water that may leak past the control valve at a hose station or that could be trapped between a fire department connection and a check valve. The AD-2 is installed vertically and utilized with an open drain. Its 1/2 inch NPT male inlet permits direct connection to the low point to be drained. The Model AD-2 Automatic Drain Valve is a redesignation of the Gem Model F789. The Model AD-2 Automatic Drain Valve described herein must be installed and maintained in compliance with this document, as well as with the applicable standards of the NATIONAL FIRE PROTECTION ASSOCIATION (NFPA), in addition to the standards of any other authorities having jurisdiction. Failure to do so may impair the performance of these devices. The owner is responsible for maintaining their fire protection system and devices in proper operating condition. Contact the installing contractor or product manufacturer with any questions
