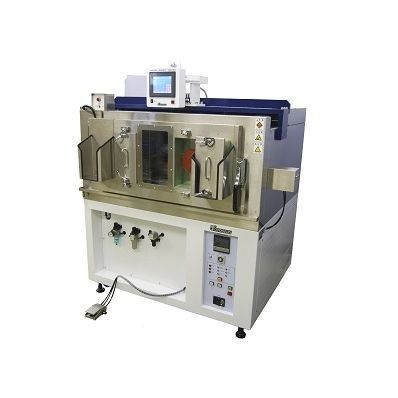

Impact testing machine DG-40automaticmaterialthree-phase
Add to favorites
Compare this product
Characteristics
- Test type
- impact
- Operating mode
- automatic
- Test material
- material
- Other characteristics
- low-temperature, three-phase
Description
The Temperature-controlled Impact Tester which measures absorbed impact energy of plastic specimens based on Izod, Charpy and Tensile-impact strength method at low temperature.
Charpy - • ISO 179
• ASTM D256
Izod - • ISO 180
• ASTM D256
Tensile-impact - • ISO 8256
• ASTM D1822
Cooling method - Refrigerator
Temperature range - -40°C to +40°C
Hammer capacity - • Max. 15J (Charpy)
• Max. 22J (Izod)
Test results - • Lifting angle
• Absorbed energy
• Absorbed energy per unit sectional area
Dimensions - W1300 × D1200 × H1600mm
Weight - Approx. 600kg
