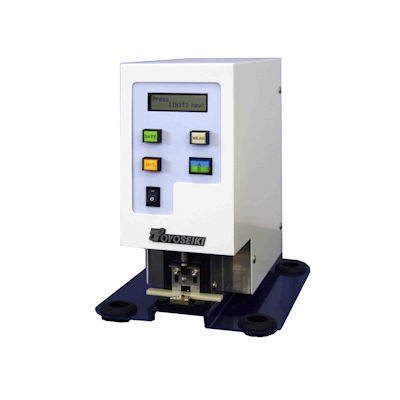

Thickness measuring machine NTM

dimensionalnot specifiedautomatic

This device automatically measures “thickness” and “remaining width” of Charpy/Izod/Tensile impact specimen and transfer and set them to a Pendulum Impact Tester and PC* . (*PC is option) Features & Benefits • Just by placing the specimen and pressing the measurement button, the remaining width and thickness of the notched specimen for Charpy/Izod and Tensile impact test are automatically and continuously measured. • The time required for dimensional measurement is greatly reduced and the test can be performed efficiently. • In addition, by connecting to the main body of the pendulum impact tester and PC* (*optional), the measured specimen dimensions can be automatically transferred. Measuring method - Linear gauge (air cylinder driven) Measurement items - • Thickness • Remaining width Measurement accuracy - ±0.01mm Specimen size - • Thickness 10±0.5mm, remaining width 8±0.5mm (Charpy) • Thickness 12.7±0.5mm, remaining width 10.16±0.5mm (Izod) Communication port - • Serial (D-sub 9 pin): x2 • Serial (D-sub 25 pin): x 1 Communication mode - PC ← NTM ↔ Impact Tester Power supply - Single-phase, AC100-240V, 50/60Hz, 0.2kVA (or specify) Compressed air - 0.2MPa Dimensions - W200 × D300 × H280mm Weight (approx.) - 7kg
