Tensile testing machine IT

impactautomaticmaterial

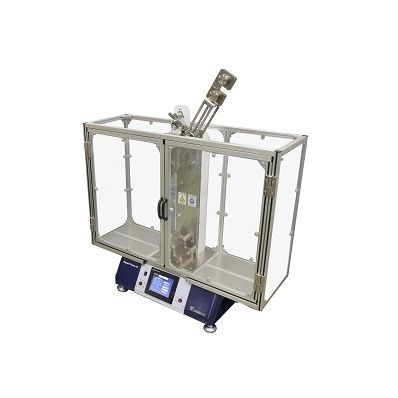

The (Pendulum) Impact Tester measures the impact value from the amount of pendulum energy required to fracture a specimen. The Izod, Charpy, and Tensile methods can be used. Optional instrumentation is useful for analysis of brittleness and toughness at impact. Features – Digital display type eliminates abrasion loss error of the needle and reading error by the measurer. – Charpy impact test, Izod impact test, tensile impact test, etc. can be performed by changing the hammer and specimen support. – Easy operation with color LCD touch panel. Average, maximum, minimum, coefficient of variation, and standard deviation of impact values can be displayed and saved. – Measurement data can be saved on a PC*. (*Optional dedicated data processing software is required.) – Hammer release* is available at the touch of a button. No individual differences in hook release and improved reproducibility. (*Optional) – Instrumentation system* selectable. (*Optional. Charpy impact test and in-base method tensile impact test only) – Specimen support stand* with positioning can be selected. Specimens can be set easily and precisely. (*Option for Charpy impact test) – Safety cover* (without or with top panel) selectable (*Optional)
