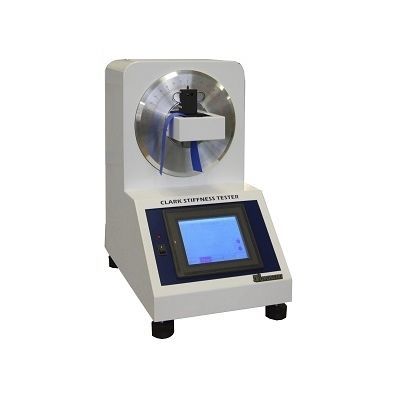

Stiffness tester D

for paperbenchtopdigital

The Digital Clark Stiffness Tester evaluates the stiffness of paper and woven cloth, etc. by simulating the state of folding by self-weight. Features & Benefits • Simply mount the test specimen and tap the start key to begin measurement. (Automatically adjusts specimen overhang length and measures critical length) • Simultaneous display of critical length and Clark stiffness. • Help screen allows easy measurement. • Measurement mode can be switched between automatic and manual. • Displays average, maximum, and minimum measured values. • Inspection mode enables frictional resistance check of pendulum bearings. • Connectable to optional mini printer. Related Standards JIS P 8143 - Paper-Determination of stiffness-Clark stiffness tester method JIS L 1096 - Testing methods for woven and knitted fabrics Specifications Revolutions - 1.0rpm ± 0.1rpm Specimen Size - • Width: 15 to 50mm • Length: 75 to 300mm • Thickness: 0.8mm or less Power Supply - Single-phase, AC100V, 50/60Hz, 0.5kVA (or specify) Dimensions - W270 × D420 × H470mm Weight - Approx. 20kg
