Tear tester

for filmbenchtopElmendorf

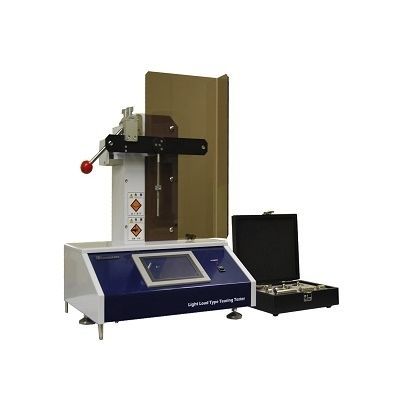

The Light-load Tearing Tester measures the tear strength of a “single” specimen of a material with low tear strength, such as plastic film. Suitable for materials with low tearing strength that cannot be handled by the Elmendorf type tearing tester. Features – Simply set the pendulum in the starting position, start the machine, and it automatically measures the swing angle and calculates the “Tear Strength”. – When the measurement range is selected, the weight to be attached to the pendulum is indicated. – The friction of the bearing is compensated by measuring the swing angle of the pendulum. – Tear Strength” is displayed as a line graph. – Calculates the average, maximum, minimum, and standard deviation of the measurement data. – One calibration weight is included for each measurement range. Measurement range - 196, 490, 980, 1960, 4900, 9800mN Specimen dimensions - 63.5 × 50mm Specimen clamp - Screw clamp Display items - Tearing strength, average, minimum, maximum, standard deviation Interface - RS-232C Power supply - Single-phase, AC100V, 50/60Hz, 0.2kVA (or specify) Dimensions - W400 × D420 × H590mm Weight (approx.) - 30kg
