Stiffness tester 826benchtopdigital
Add to favorites
Compare this product
Characteristics
- Test type
- stiffness
- Configuration
- benchtop
- Other characteristics
- digital
Description

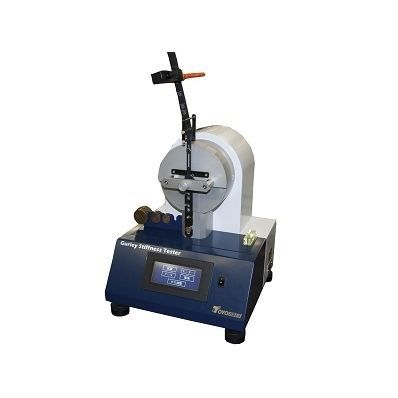

The Digital Gurley type Stiffness Tester evaluates the stiffness of comparatively weak materials such as woven cloth, paper, film, etc. by bending vertically mounted sample to left and right.
JIS L 1085 - Testing methods for nonwoven interlining fabrics
JIS L 1096 - Testing methods for woven and knitted fabrics
Measuring range - 0.01 to 5000mN
Width of sample - 12.7, 25.4, 50.8mm
Length of sample - 25.4, 38.1, 63.5, 88.9, 114.3mm
Speed of movable arm - 2rpm (6°/sec.)
Power supply - Single-phase, AC100-240V, 50/60Hz, 0.2kVA
Dimensions - W300 × D300 × H550mm
Weight - approx. 15kg
VIDEO
