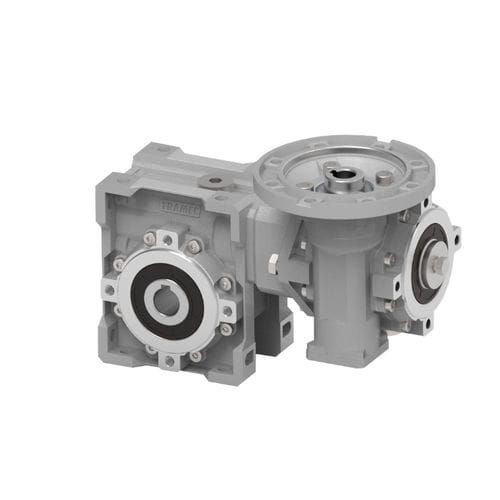

Worm gearbox XX

200 - 500 Nm500 - 1000 Nm100 - 200 Nm

Worm gearboxes XX – KK – KX are projected to provide high speed reductions. Indeed, the combination of two worm gearboxes provides very low efficiency, however the fact substantial reduction in speed can be obtained in an extremely reduced space makes this solution very interesting and sometimes irreplaceable. Combined worm gearboxes are available in 14 sizes. PRODUCT DETAILS • Reduction range 150 to 10000 • The KX and KK series are available for IEC version only. • The XX series is available in the XXA version with shaft and in two versions with motor coupling: XXC (compact) and XXF (with bell and joint). • The hollow shaft is supplied as standard. A broad range of accessories is available: second input, tapered roller bearings on the worm wheel, output flange, single or double extended output shaft, torque limiter with through hollow shaft, torque arm, hollow shaft protection kit, torque limiter protection kit. • Spare parts list is available on the technical catalogue WORM GEARBOXES, with brown cover.
