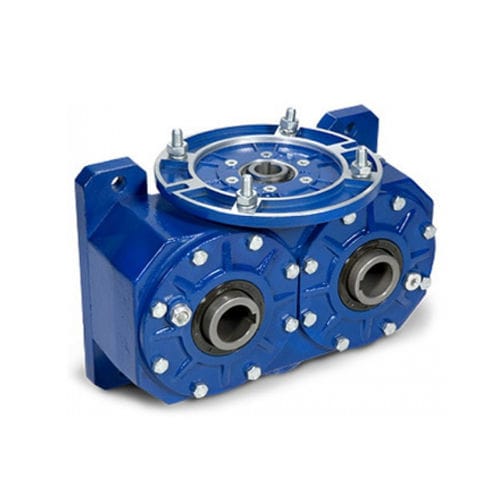

Worm gearbox VM

wheelshaftmounted

Double output worm gearboxes series includes gearboxes specially manufactured to comply with specific requirements. The kinematic motion is carried out by means of a worm shaft and two worm wheels to have two output shafts with a synchronous rotation. These gearboxes can be assembled to electric motors or moto variators fully comply with the IEC specifications. These worm gearboxes are available in 4 sizes PRODUCT DETAILS • Reduction range 7.5 to 80 • Casing and flanges are made from aluminium and painted BLUE RAL 5010. • Worm screw is made from alloy steel. Hardened and case‐hardened then finished by grinding. • Worm wheel is in bronze toothed band. Inserted by casting on cast‐iron hub. • Taper roller bearings are mounted on the screw and on the two outputs. • Double output worm gearboxes are normally supplied without lubricant. However, they can be supplied with synthetic lubricant on request. • Spare parts list is available on the technical catalogue WORM GEARBOXES, with brown cover.
