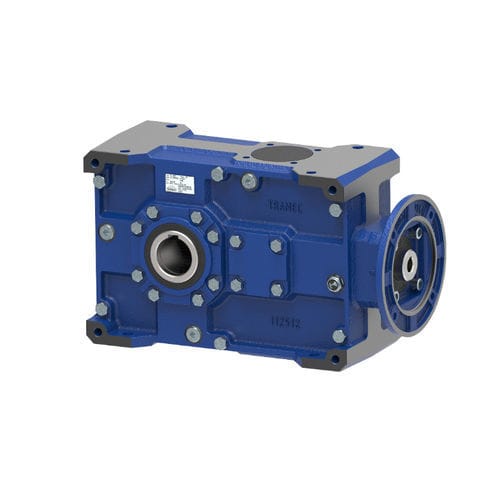

Bevel gearbox T

coaxialsolid-shaft200 - 500 Nm

Overview
Bevel helical gearboxes T series are designed for medium‑heavy industrial applications requiring continuous duty and high driving torque. High efficiency and a wide reduction range make these units suitable for conveyors, mixers, crushers and other driven equipment.

Product details

• TRAMEC bevel helical gearboxes available in 10 sizes (two-stage) and 9 sizes (three-stage)
• Power up to 137.1 kW
• Reduction ratio range: 8 to 630
• Torque range (T2M): 110 – 11,850 Nm

Input shaft options
Available configurations include projecting input shaft, pre-engineered motor coupling (bell and joint) and pre-engineered compact motor coupling (compact coupling excluded for sizes 56, 63 and 75).

Materials and finish
Casing materials: aluminium for sizes 56, 63, 75; engineering cast iron for sizes 71, 90, 112, 140, 160, 180; spheroidal graphite cast iron for sizes 200 and 225. External finish: painted BLUE RAL 5010, except aluminium sizes 56, 63 and 75.

Accessories

• Output shaft
• Mounting/dismounting kit with hollow output shaft (except T56, T63, T71, T75)
• Hollow output shaft with shrink disc
• Output flange
• Torque arm
• Hollow shaft protection kit
• Backstop device

Spare parts
Spare parts list is available in the technical catalog "HELICAL AND BEVEL HELICAL GEARBOXES".

Tools & Utilities
3D configuration manager: online configurator to generate 3D CAD models of the required product. Downloadable catalogs (EN/ES/FR and IT/EN/DE versions) are available for helical and bevel helical gearboxes.

Characteristics / Technical specifications

• Series: T series
• Power (max): 137.1 kW
• Reduction ratio range: 8 ÷ 630
• Torque range (T2M): 110 – 11,850 Nm
• Available sizes: 56, 63, 71, 75, 90, 112, 140, 160, 180, 200, 225 (two- and three-stage combinations as specified)
• Input shaft options: projecting shaft, bell-and-joint motor coupling, compact motor coupling (certain sizes excluded)
• Casing materials: aluminium (56–63–75), engineering cast iron (71–180), spheroidal graphite cast iron (200–225)
• Finish: external paint BLUE RAL 5010 (except aluminium sizes)
• Available accessories: output shafts, hollow output shafts, shrink discs, output flanges, torque arms, protection kits, backstops
