Multifunction calibrator 9000A series

temperaturevoltagecurrent

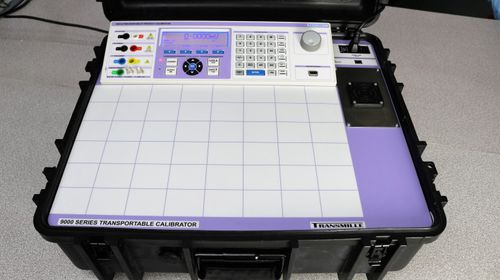

TRANSPORTABLE MULTIPRODUCT CALIBRATOR • 0 – 1000V DC / AC Voltage • 0 – 30A DC / AC Current • 0 – 1 GOhm Resistance • 1nF – 10mF Capacitance • 1Hz – 10MHz Frequency • Range of external accessories to increase workload The 9000A series range of multiproduct calibrators offers the widest workload of any calibration system presently available. The 9000A series provides all of the functionality of the 3000A series multiproduct calibrator in a dedicated ruggedised case for the ultimate in on site calibration performance. Using an innovative series of internal and external options, the 9000A provides workload coverage that no other manufacturer offers. With external options ranging from Thermocouple source and measurement through to a dedicated low current source, and internal options providing Oscilloscope calibration to 600MHz and calibration of power meters with power quality functionality. The 9000A series is designed within industrial environments including offshore, aerospace and military applications. The rugged enclosure with integrated wheels and retractable handle lends itself to easy transportation to and from site. A fast warm-up time ensures calibration can be performed quickly and accurately. WIDE WORKLOAD COVERAGE The 9000A series offers the widest workload coverage of any multi-product calibrator, with the ability to calibrate 18 types of instrument. It has the power to drive older analogue instruments alongside the accuracy to calibrate modern digital instruments.
