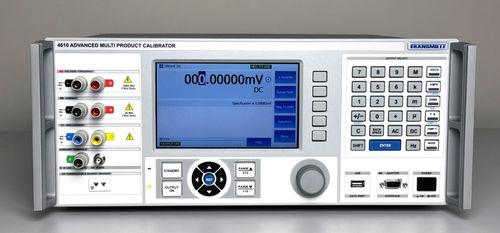

Multifunction calibrator 4610A

currentvoltageresistance

Short Description

• DC voltage: 0–1000 V
• AC voltage: 2 mV–1000 V, 10 Hz–1 MHz
• DC current: 0–30 A
• AC current: 20 µA–30 A, 10 Hz–30 kHz
• Variable resistance: 0 Ω–1 GΩ
• Variable capacitance: 300 pF–100 mF
• Frequency output: 1 Hz–1.2 MHz
• Oscilloscope options up to 3 GHz

Top Features

• AC & DC voltage source and measure to 1000 V
• AC & DC current source and measure to 30 A (selectable max current options)
• 2/4‑wire decade and variable resistance to 1 GΩ
• Decade and variable capacitance from 300 pF to 100 mF
• Frequency source/output to 1.2 MHz
• Integrated thermocouple source & measure (multiple types supported)
• GPIB (IEEE‑488) and USB interfaces standard
• 7" full‑colour touchscreen display
• Power output options: simultaneous voltage & current, harmonic generation
• High‑bandwidth oscilloscope options available (up to 3 GHz)

Additional information
Format: Desktop
Accuracy class: < 5 ppm, < 10 ppm, < 25 ppm, < 50 ppm, < 100 ppm
Scope options: < 600 MHz, < 1.1 GHz, < 3 GHz
Maximum current: 10 A, 22 A, 30 A
Maximum resistance: 100 MΩ, 1 GΩ
Power output: Available

4610A Specifications
DC VOLTAGE: 0 – ±1025 V
DC CURRENT: 0 – 30 A
AC VOLTAGE: 2 mV – 1000 V, 10 Hz – 1 MHz
AC CURRENT: 20 µA – 30 A, 10 Hz – 30 kHz
RESISTANCE (PASSIVE): 0 Ω – 1 GΩ
RESISTANCE (VARIABLE): 0 Ω – 1 GΩ (2‑wire, 2‑wire compensated & 4‑wire)
CAPACITANCE (PASSIVE): 1 nF – 10 µF
CAPACITANCE (VARIABLE): 300 pF – 100 mF
FREQUENCY: 10 Hz – 1.2 MHz
TEMPERATURE (THERMOCOUPLE): J / K / T / R / S / B / U / N / E / L / C; resolution 10 µV/°C indicated
TEMPERATURE (PRT / RTD): 2‑wire, 2‑wire compensated & 4‑wire output, selectable R0
POWER (Simultaneous Voltage & Current): Options available, including harmonic generation

Technical characteristics

• Model: 4610A
• AC & DC voltage range: up to 1000 V
• AC & DC current range: up to 30 A (options: 10 A, 22 A, 30 A)
• Resistance (variable/passive): up to 1 GΩ (also 100 MΩ option)
• Capacitance (variable/passive): 300 pF – 100 mF (passive 1 nF – 10 µF)
• Frequency output/source: 10 Hz – 1.2 MHz
• Thermocouple support: J, K, T, R, S, B, U, N, E, L, C; resolution 10 µV/°C
• RTD/PRT support: 2‑wire, 2‑wire compensated & 4‑wire, selectable R0
• Interfaces: GPIB (IEEE‑488) & USB standard
• Display: 7" full‑colour touchscreen
• Power output options: simultaneous voltage & current with harmonic generation
• Oscilloscope options: high‑bandwidth up to 3 GHz
