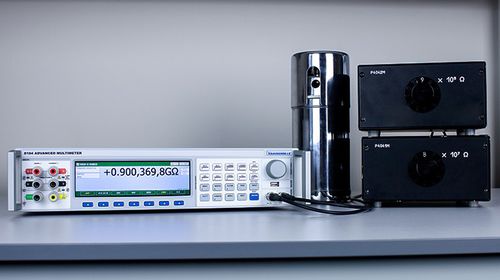

Digital multimeter 8100 Series

benchtop1000 V30 A

The 8100 Series Multimeter signals a revolution in the way that precision measurements are performed. • 4 / 9 PPM Accuracies • Up to 30A Current Ranges • Resistance Measurement to 1 TOhm • Advanced Maths Functions • Full Colour Screen • USB / RS232 / GPIB / LAN Interfaces • Dedicated Low Noise Electrometer Input (8104) • Rear Panel Inputs (8104) The 8100 Series from Transmille is the most advanced multimeter available on the market. Featuring a full colour screen, the 8100 Series offers a wide range of functionality and covers a wide range of input parameters whilst achieving breakthrough performance. The 8100 is a significant improvement on previous technologies and remains at an affordable price point. HIGH PERFORMANCE DESIGN The 8100 Series is aimed at laboratories, manufacturers and design facilities requiring a wide range of measurement parameters with specifications as low as 4ppm. The 8100 is designed with metrologists in mind, with great care taken in the design of sensitive input electronics. Ultra low input bias current on DC Voltage inputs minimise errors when utilised as a null meter with Resistive Dividers, and High Input Impedance on AC Voltage up to 10V reduces errors when measuring current through use of current shunts to enable the 8100 Series ensuring reliable measurements across multiple functions. Dynamic display of accuracy, 8.5 digital precision, measurement uncertainty, standard deviation and more provide metrologists with immediate feedback of their measurement and enable users to maximise performance while improving confidence in measurements.
