Digital multimeter 8158benchtop1000 V110 V
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- benchtop
- Max voltage
- 1000 V
- Power supply
- 110 V
- Applications
- laboratory
- Other characteristics
- USB
- Max DC voltage
Min.: 0 V
Max.: 1,000 V
- Max AC voltage
Min.: 0 V
Max.: 1,000 V
- Max DC current
Min.: 0 mA
Max.: 1,500 mA
- Max AC current
Min.: 0 mA
Max.: 1,500 mA
Description
Description

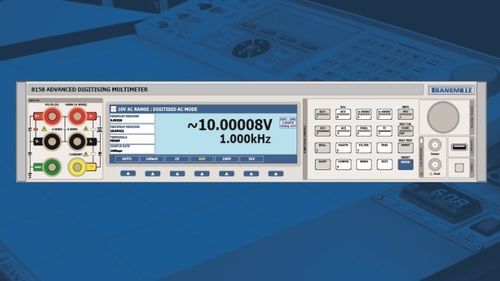

The Transmille 8158 Advanced Digitising Multimeter is an 8.5-digit bench instrument engineered to replace aging multimeters while providing high-speed digitising and modern remote interfaces. It delivers over 100,000 samples per second and supports both digital and analogue measurement modes for precision test and measurement applications.
Key features
Measurements / Ranges
DC VOLTAGE
0 - 1000 V — Digital and Analog measurement modes
DC CURRENT
100 nA to 1.5 A
AC VOLTAGE
0 - 1000 V — 8 ppm (basic DCV accuracy reference)
AC CURRENT
100 µA to 1.5 A
FRONT / REAR INPUTS
Fitted as standard
Additional information
8.5 digit resolution; designed to replace aging multimeters while offering modern interfaces and high-speed digitising measurement capability.
Technical specifications
The Transmille 8158 Advanced Digitising Multimeter is an 8.5-digit bench instrument engineered to replace aging multimeters while providing high-speed digitising and modern remote interfaces. It delivers over 100,000 samples per second and supports both digital and analogue measurement modes for precision test and measurement applications.
Key features
- Sampling rate: >100,000 samples per second
- Digital AC measurement capability
- 8 ppm basic DCV accuracy
- Interfaces: GPIB, USB, RS232 and LAN
- Universal input voltage support
Measurements / Ranges
DC VOLTAGE
0 - 1000 V — Digital and Analog measurement modes
DC CURRENT
100 nA to 1.5 A
AC VOLTAGE
0 - 1000 V — 8 ppm (basic DCV accuracy reference)
AC CURRENT
100 µA to 1.5 A
FRONT / REAR INPUTS
Fitted as standard
Additional information
8.5 digit resolution; designed to replace aging multimeters while offering modern interfaces and high-speed digitising measurement capability.
Technical specifications
- Model: 8158 (8.5 digit multimeter)
- Sampling rate: >100,000 samples per second
- DC Voltage range: 0 – 1000 V (digital & analog modes)
- DC Current range: 100 nA – 1.5 A
- AC Voltage range: 0 – 1000 V (stated 8 ppm)
- AC Current range: 100 µA – 1.5 A
- Inputs: Front and rear inputs fitted as standard
- Interfaces: GPIB, USB, RS232, LAN
- Universal input voltage capability
