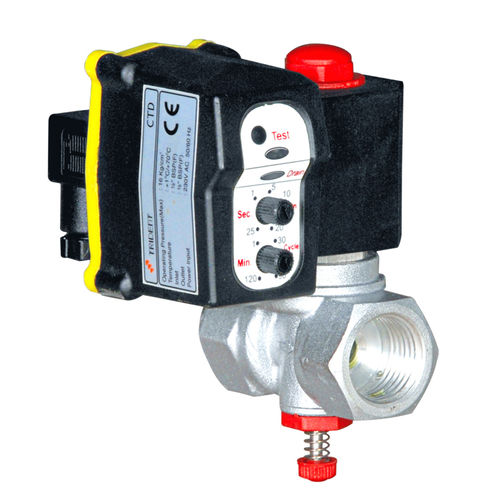

Drain valve CTD series
pistonmanualelectrically-operated

drain valve
drain valve
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
manual, electrically-operated
Function
drain
Body
compact, aluminum, waterproof
Other characteristics
high-performance
Temperature

Min.: 1 °C (34 °F)

Max.: 70 °C (158 °F)

Pressure

Min.: 2 bar (29 psi)

Max.: 16 bar (232.1 psi)

DN

0.5 in

Flow rate

150 l/h (40 us gal/h)

Description

Drain Valve Timer Type - Series CTD The CTD valve series represents the ultimate in valve performance. Decades of experience of valve manufacturing have allowed us to identify the issues commonly associated with drain valves and undertake the necessary improvements required. Today the CTD valve incorporates an ultra-reliable MCU,which features dual control of both drain cycle and drain valve open-time. The oversized orifice design and a specifically designed solenoid operator section allow rapid discharge of dust and particles. Operations The drain is controlled by a timer. The timer module periodically activates the valve. The valves are designed for dirty liquid and handle all types of condensate. These direct acting models have 2.5 mm orifice. The timer has adjustments for both Drain and cycle time. Further there is manual flush button to drain excess condensation if required. Features •All new Mechanical clean function •Proven Reliability •All digital Electronic Circuit for time control •Water proof IP 55 enclosures, ideal for outdoor installations •Adjustable Drain and Cycle times •CE Approved Application •Receivers •Dryers •Heat Exchangers
