Oil pump HPL serieselectricself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- oil
- Operation
- electric
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- for torque wrenches
- Other characteristics
- compact, three-stage
- Flow
Min.: 0.8 l/min
(0.21134 us gal/min)Max.: 7 l/min
(1.8492 us gal/min)- Pressure
10,000 psi
Description

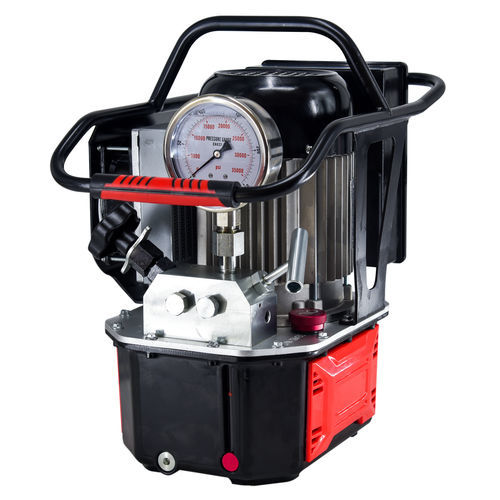

Compact three stage pump.
The single valve block can be replaced by component FP-4, thereby allowing 2 or 4 tools to be driven simultaneously.
Three stage induction motor driven so brushless.
Oil cooler, supporting continuous operation with steel frame.
4'' Diameter gauge, aluminum oil tank with oil level indicator.
Variable pressure adjustment between 1000- 10,000 Psi.
Designed for continuous operation.
