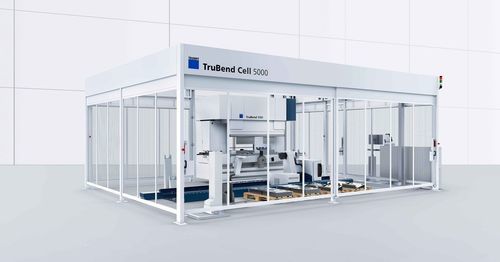

Robotic bending cell TruBend Cell 5000 Lean Edition

handlinggripping

Overview
The TruBend Cell 5000 Lean Edition is a productive, cost-efficient bending cell designed for fast, precise bends and rapid changeovers. It supports flexible automation for a wide range of part sizes and materials through intuitive programming and modular gripper solutions.

Key benefits

• Programming made easy: TecZone Bend generates program suggestions from 2D/3D data (including NC code) within seconds, reducing setup time.
• Flexible part handling: Supports vacuum and mechanical grippers for small to medium parts and parts up to 40 kg.
• Automatic gripper change: Fast, automated gripper swaps reduce manual intervention and setup time.
• Reliable pickup: Sheet sensor ensures correct blank detection and stable handling without a dedicated centring station.

Automation & handling options

• Multigripper medium: Adjustable, supports vacuum gripping; suited for medium parts and configurable offline to reduce setup time.
• Pivoting-jaw gripper: For automated bending of small components; linear and rotary axes minimise regrip operations.
• Multigripper small: Adjustable for smaller parts, quick-release fasteners and 180° rotation to save cycle time for box bending.
• Small parts package: Includes sheet removal station and gripper to separate and produce components in parallel to main production.
• Gripper changing console: Automatically replaces grippers to process mixed orders without manual changeover.

Video
Product video available showing the TruBend Cell 5000 Lean Edition and its operation.

Technical data (summary)
Press force: 850 kN
Bending length: 2210 mm
Width between columns: 1750 mm
Usable open height: 615 mm
Throat depth: 420 mm
Rapid downward movement: 200 mm/s
Maximum Y press operation: 25 mm/s

BendMaster
Maximum part size: 2000 mm x 1000 mm
Profiles: up to 2000 mm
Maximum part weight: 40 kg
Maximum carrying capacity: 60 kg
Minimum sheet thickness: 0.7 mm
Path length: 6 m
Max. sheet stack: 700 mm
Maximum stack height for finished parts: 1000 mm

Dimensions and weights
BendMaster weight: 595 kg
Weight of basic machine: 7800 kg
TruBend machine (L×W×H): 3020 mm x 1800 mm x 2835 mm
Floor track of each 2000 mm element: 310 kg

Technical specifications

• Press force: 850 kN
• Bending length: 2210 mm
• Width between columns: 1750 mm
• Usable open height: 615 mm
• Throat depth: 420 mm
• Rapid downward movement: 200 mm/s
• Maximum Y press operation: 25 mm/s
• BendMaster maximum part size: 2000 mm x 1000 mm
• Profiles (BendMaster): up to 2000 mm
• Maximum part weight (BendMaster): 40 kg
• Maximum carrying capacity (BendMaster): 60 kg
• Minimum sheet thickness: 0.7 mm
• Path length: 6 m
• Max. sheet stack: 700 mm
• Maximum stack height for finished parts: 1000 mm
• BendMaster weight: 595 kg
• Weight of basic machine: 7800 kg
• Machine dimensions (L×W×H): 3020 mm x 1800 mm x 2835 mm
• Floor track per 2000 mm element: 310 kg
