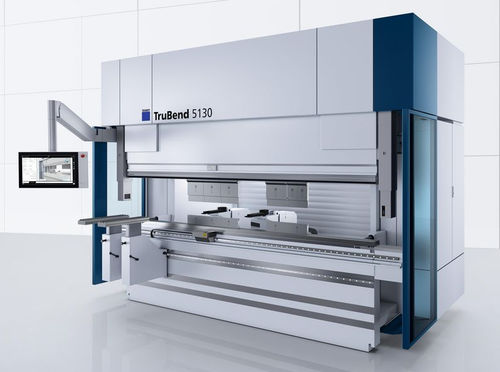

Servo-electric press brake TruBend 5000 series

CNC6-axishigh-speed

Overview
The TruBend Series 5000 from TRUMPF is a modular press brake family engineered for productive, flexible sheet-metal bending across a wide range of part sizes and materials. From programming and setup to automatic tool handling and angle control, the Series 5000 focuses on short cycle times, fast changeovers and consistent first-piece quality.

Key benefits

• High productivity with reduced setup times
• Flexible part handling via 6-axis backgauge for complex geometries
• Lower tool displacement enabling special applications (e.g. folding)
• On‑Demand Servo Drive for quiet, fast and energy-efficient operation
• ToolMaster automatic tool changer to minimise tooling effort
• Touchpoint TruBend and MobileControl for intuitive, tablet-like operation
• Angle measurement options (ACB Wireless, ACB Laser, ACB Speed) for high first-part accuracy
• Thickness Controlled Bending (TCB) and Part Indicator to reduce rejects

Features & equipment

• 6-axis backgauge – enables full freedom in part positioning and handling for complex bending sequences.
• ToolMaster (automatic tool change) – automates tool setup, ideal for small batches and frequent changes.
• Lower tool displacement – expands processing options such as folding and special profiles.
• On‑Demand Servo Drive – supplies drive energy only when needed; very quiet and energy efficient with high working speed.
• ACB systems – ACB Wireless and ACB Laser provide automated angle measurement and correction.
• TCB – sheet-thickness detection and automatic depth compensation for stable results.
• Part Indicator & camera assistance – visual guidance for correct part insertion to reduce scrap.
• LED illumination and ergonomic supports – optimized work area lighting and adjustable support/brackets for heavy or large parts.
• Software integration – compatible with TruTops Boost, TecZone Bend and TRUMPF digital solutions for faster programming and connectivity.

Technical data (selected comparison across Series 5000 variants)
Press force: 850 kN (5085) up to 3200 kN (5320).
Bending length: 2210 mm up to 4420 mm depending on model.
Width between columns: 1750 mm to 3680 mm.
Usable open height: standard 385 mm (selected variants 615 mm).
Throat depth: 420 mm. User interface: Touchpoint TruBend; MobileControl available.
Typical machine lengths and weights vary by model (examples: 3020–5180 mm length; weight ~8300 kg to 23400 kg).

Applications

• High-precision bending of thin and thick sheet metal
• Long profiles and large parts
• Small to medium batch production with fast changeovers
• Automated cell integration for series production

Technical specifications

• Series name: TruBend Series 5000
• Application: Industrial press brakes for sheet metal bending
• Control: Touchpoint TruBend; MobileControl
• Angle measurement: ACB Wireless, ACB Laser, ACB Speed
• Automation: ToolMaster, TruBend Cell 5000 integration
• Drive concept: On‑Demand Servo Drive
• Thickness compensation: Thickness Controlled Bending (TCB)
• Lighting: LED process illumination
• Software: TruTops Boost, TecZone Bend, connectivity options (OPC UA)
