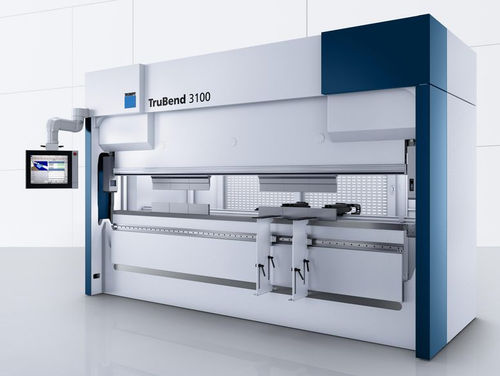

Hydraulic press brake TruBend 3000 series

CNC4-axis5-axis

Overview
The TruBend Series 3000 is a versatile industrial press brake designed for precise bending and stable production processes. Available in multiple force and length variants, it combines automated angle measurement and energy-efficient hydraulics to support consistent part quality and efficient small-team production.

Main benefits

• Cost efficiency: selected premium functions at competitive investment levels for productive operations.
• Angle accuracy: ACB Laser angle measuring system ensures repeatable angles (±0.3°) across a 30°–150° range.
• Productivity: offline programming with TecZone Bend and features that reduce setup and handling time.
• Operator assistance: bending aids with 150 kg capacity simplify handling of heavy parts.
• Safety: BendGuard light-field monitoring combines safe operation with minimal throughput impact.

Key features

• ACB Laser angle measuring system: non-contact optical measurement with multiple modes (ACB Speed, ACB Smart, Identify, Copy Pressing Depth).
• Backgauge: standard 4 axes, scalable to 5 axes; 5-axis option enables X travel of right stop finger up to ±75 mm; up to three additional gauge fingers for long profiles.
• Large usable installation/open height: up to 615 mm on applicable models for tall boxes and complex components.
• OnDemand hydraulics: dynamic working speed 15 mm/s and rapid traverse 170 mm/s for energy-efficient cycle times.
• Bending aids and supports: up to two bending aids (150 kg each), support brackets 70/100 kg, CNC height control and automatic adjustment to die/part geometry.
• User interface: Touchpoint TruBend; option for an additional monitor to support paperless production and TecZone Bend display.
• Connectivity: interfaces (e.g., OPC UA) for integration with TRUMPF software (Oseon) and third-party monitoring/analysis tools.

Applications
The TruBend Series 3000 is suitable for multi-bend components, long profiles (with attachable gauge fingers), and a wide range of sheet thicknesses. It supports flexible batch sizes and consistent output in industrial sheet metal fabrication.

Technical data (selected models)
Model | TruBend 3100 | TruBend 3130 | TruBend 3170
Press force | 1000 kN | 1300 kN | 1700 kN
Bending length | 3230 mm | 3230 mm | 4250 mm
Width between columns | 2690 mm | 2690 mm | 3680 mm
Usable open height | 385 mm | 615 mm | 615 mm
User interface | Touchpoint TruBend | Touchpoint TruBend | Touchpoint TruBend
Max Y axis speed (rapid downward) | 170 mm/s | 170 mm/s | 170 mm/s
Max Y axis speed (operation) | 15 mm/s | 15 mm/s | 15 mm/s
Dimensions (L×W×H) | 4220×2003×2375 mm | 4220×2003×2835 mm | 5210×2030×3000 mm
Weight | 9200 kg | 10800 kg | 15200 kg

Technical specifications

• Series: TruBend Series 3000 (new generation).
• ACB Laser: non-contact optical angle measurement; accuracy ±0.3°; measurement range approx. 30°–150°.
• Backgauge: 4 axes standard, expandable to 5 axes; optional extra gauge fingers for long profiles.
• Hydraulics: OnDemand system delivering 15 mm/s (operation) and 170 mm/s (rapid).
• Bending aids: up to two per machine, 150 kg capacity each; CNC-controlled height and automatic adjustment.
• Support brackets: Support Bracket 70 (up to 70 kg) and Support Bracket 100 (up to 100 kg), infinitely height-adjustable on rails.
• Tooling: compatibility with TRUMPF bending tools, lightweight and coated options (e.g., LASERdur ZN) available.
• Software & connectivity: TruTops Boost, TecZone Bend; OPC UA and other interfaces for integration.
