Locomotive railway gearbox GFT 1-48-446A
helical

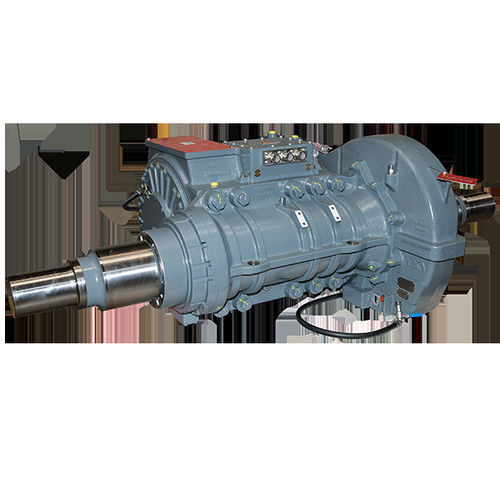

Locomotive railway gearbox - GFT 1-48-446A - TSA - helical
Locomotive railway gearbox - GFT 1-48-446A - TSA - helical
Locomotive railway gearbox - GFT 1-48-446A - TSA - helical - image - 2
Add to favorites
Compare this product

Characteristics

Train type
for locomotives
Transmission type
helical
Rated power

378 kW
(514 hp)

Description

The TSA Gearbox is designed for the Stadler Rail EUROMulti Locomotive, specifically for Valtionrautatiet (VR) in Finland. This gearbox features a single reduction helical gearbox for nose-suspended drive with a horizontal split housing. The motor/gearbox connection is a flying pinion (hub pinion), and the gearbox/wheel-set connection is direct on the wheel set shaft. The gear ratio is 4.789. - Axle load: 22.5 t - Wheel diameter new/worn: 1100/1020 mm - Max. operating speed of vehicle: 120 km/h - Max. starting effort: 86.5 kN - Nominal power: 378 kW - Total weight incl. couplings: 960 kg - Suitable for traction motor: TMF 64A-44-6
