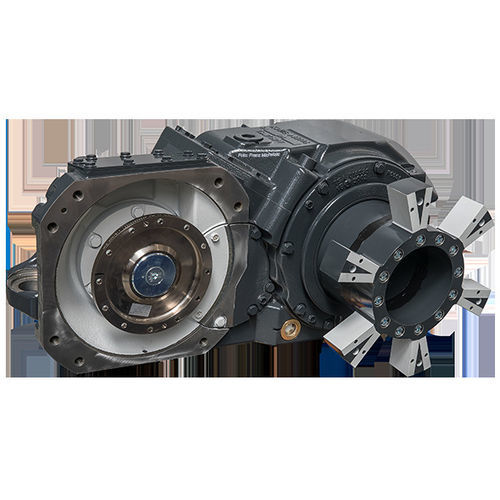

Metro railway gearbox GMK 2-101-383Ahelical
Add to favorites
Compare this product
Characteristics
- Train type
- for metros
- Transmission type
- helical
- Rated power
68 kW
(92 hp)
Description
The TSA Gearbox for Stadler Rail Metro for Glasgow is designed for use in metro systems, specifically for the Stadler Rail Metro in Glasgow, Great Britain.
Technical specifications Gearbox:
- Gearbox type and drive setup: Double reduction helical gearbox for semi-suspended drive, horizontal split housing
- Motor/Gearbox connection: Membrane coupling
- Gearbox/Wheel-set connection: Rubber wedge coupling (single plane)
- Gear ratio: 10.06
Additional Specifications:
- Axle load: 7.5 t
- Wheel diameter new / worn: 540 / 480 mm
- Max. operating speed of vehicle: 58 km/h
- Max. starting effort: 16.2 kN
- Nominal power: 68 kW
- Total weight incl. couplings: 311 kg
- Suitable for traction motor: TMW 28-23-4
