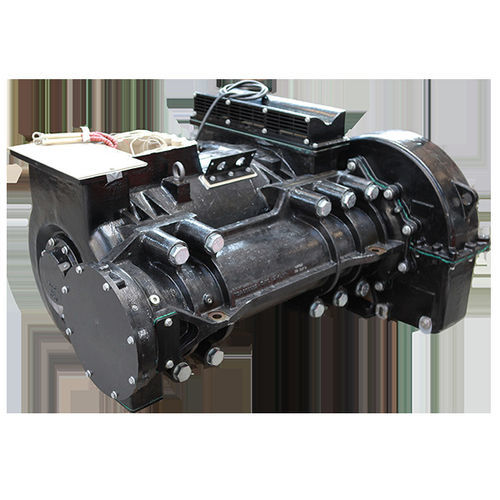

Commuter train railway gearbox GFT 1-45-382A
helical

Commuter train railway gearbox - GFT 1-45-382A - TSA - helical
Commuter train railway gearbox - GFT 1-45-382A - TSA - helical
Commuter train railway gearbox - GFT 1-45-382A - TSA - helical - image - 2
Add to favorites
Compare this product

Characteristics

Train type
for commuter trains
Transmission type
helical
Rated power

346 kW
(470 hp)

Description

The TSA Gearbox for India is designed for use in Indian Railways. It features a single reduction helical gearbox for nose suspended drive with a horizontal split gear case. The connection between the motor and gearbox is facilitated by a flying pinion (hub pinion), and the gearbox connects directly to the wheel set shaft. The gear ratio is 4.48. - Axle load: 20.3 t - Wheel diameter new/worn: 952/877 mm - Max. operating speed of vehicle: 110 km/h - Max. starting effort: 34.0 kN - Nominal power: 346 kW - Total weight incl. couplings: 590 kg - Suitable for traction motor: TME 48-45-6
