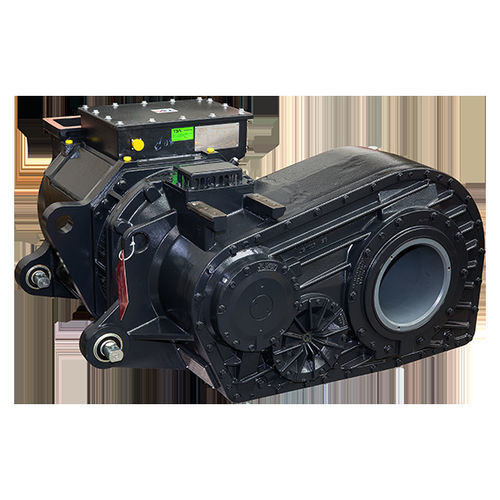

High speed train railway gearbox GMK 2-55-495Bhelical
Add to favorites
Compare this product
Characteristics
- Train type
- for high speed trains
- Transmission type
- helical
- Rated power
300 kW
(408 hp)
Description
The TSA Gearbox is designed for Stadler Rail GTW DMUs, specifically for eBART and FGC (Ferrocarrils de la Generalitat de Catalunya) applications in Spain.
- Technical specifications Gearbox:
- Gearbox type and drive setup: Double reduction helical gearbox for semi suspended drive, gear case with side cover
- Motor/Gearbox connection: Membrane coupling
- Gearbox/Wheel-set connection: Rubber wedge coupling (single plane)
- Gear ratio: 5.46
- Additional Specifications:
- Axle load: 21.0 t
- Wheel diameter new / worn: 870 / 800 mm
- Max. operating speed of vehicle: 140 km/h
- Max. starting effort: 40.0 kN
- Nominal power: 300 kW
- Total weight incl. couplings: 700 kg
- Suitable for traction motor: TMF 50-29-4
