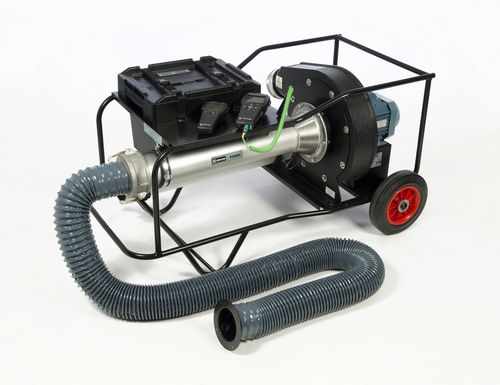

POSITIVE AND NEGATIVE DUCT ACCREDITATION SYSTEM PAN231
The Positive and Negative Duct Accreditation (PANDA) System Model PAN231 provides contractors, commissioning engineers, and research and development technicians with best-in-class choice of test equipment to quantify air leakage in ductwork and other areas as well as the ability to measure the performance of ducted systems.
PAN231 power requirements are 220 to 240 V, 1 Phase, 50/60 Hz, 10A.
PASS/FAIL REPORTING FOR STANDARDS
SMACNA HVAC Air Duct Leakage Test Manual
EN12237 Ventilation for Buildings – Ductwork – Strength & Leakage of Circular Sheet Metal Ducts
EN1507 Ventilation for Buildings – Sheet Metal Ducts with Rectangular Section – Requirements for Strength and Leakage
EUROVENT 2/2 Air Leakage Rate in Sheet Metal Air Distribution System
PAN231 is only available for sale in the U.S.
FEATURES & BENEFITS
Positive and Negative Duct Leakage Testing in one system
Find and fix duct leaks to save energy
High accuracy gives confidence in measurements
High-flow fan for testing large duct sections
Pressurizes duct quickly, allowing testing to begin in minutes
Fits in the back of vans and trucks
Weight 121 lbs. (55 kg)
Includes TSI VelociCalc® Model 9565-P and DP-Calc™ 5815
