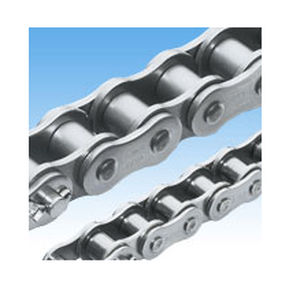

Drive chain RS-NS series

power transmissionstainless steelroller

Suitable when greater corrosion resistance than SS Series is required. This is a roller chain made of 18-12 stainless steel. Suitable when greater corrosion resistance than SS Series is required. It can be used in even harsher environments. -High corrosion resistance that exceeds SS Series Made of 18-12 stainless steel, it has even better corrosion resistance than SS Series. It can be used even in harsh environments. Can be used in special low and high temperature environments The usable temperature range is -20℃ to 400℃, which is a very wide range. *If the connecting link is secured with spring clip, spring clip will be made of 17-7 stainless steel, and if it is secured with a cotter pin, the cotter pin for RS80-NS only will be made of 18-8 stainless steel. There is no magnetic material except for spring clip and cotter pin. When selecting sprocket specifications It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications. A special sprocket is required for NS Series stainless Drive chain. Please contact us for details. Please see the chain and sprocket compatibility chart here.
