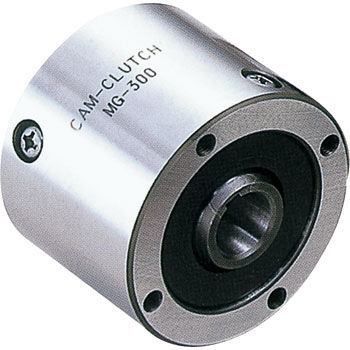

Sprag one-way clutch MG series
with internal bearingsbackstoplow-speed

Sprag one-way clutch - MG series - Tsubakimoto Chain - with internal bearings / backstop / low-speed
Sprag one-way clutch - MG series - Tsubakimoto Chain - with internal bearings / backstop / low-speed
Add to favorites
Compare this product
Go to the Tsubakimoto Chain website for more information

Characteristics

Technology
sprag
Construction
with internal bearings
Applications
backstop
Other characteristics
low-speed
Torque

Max.: 176,000 Nm
(129,810.938273 ft.lb)

Min.: 314 Nm
(231.594515 ft.lb)

Diameter

Max.: 250 mm
(9.84 in)

Min.: 19 mm
(0.75 in)

Rotational speed

Max.: 2,800 rpm
(17,592.9189 rad.min-1)

Min.: 250 rpm
(1,570.7963 rad.min-1)

Description

This is a typical model of overrunning. Compact design and high torque capacity. Excellent wear resistance during overrunning. Coupling type (MG-C) is also available. Features ・Suitable for medium- and low-speed overrunning with the compact design and high torque capacity. ・Excellent wear resistance during overrunning. ・MG-C with roller chain couplings is also available.
