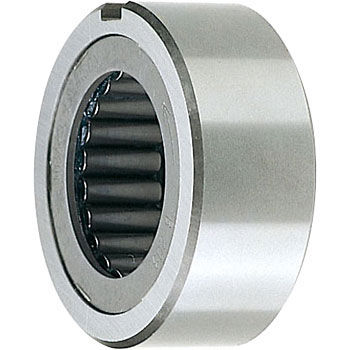

Sprag one-way clutch B seriesindexingbackstopoverrunning clutch
Add to favorites
Compare this product
Characteristics
- Technology
- sprag
- Applications
- backstop, overrunning clutch, indexing
- Other characteristics
- low-speed
- Torque
Min.: 39.2 Nm
(28.9124 ft.lb)Max.: 1,400 Nm
(1,032.587 ft.lb)- Diameter
Min.: 18.8 mm
(0.74 in)Max.: 79.36 mm
(3.12 in)- Rotational speed
Min.: 180 rpm
(1,130.97 rad.min-1)Max.: 2,400 rpm
(15,079.64 rad.min-1)
Description
Shaft-mounted type without an inner ring.
It can be mounted inside sprockets, gears, and other transmission elements.
Features
・This model has no inner race and is designed to be mounted directly to the shaft.
・Can be compactly embedded in sprockets and gears.
・Suitable for low to medium speed applications.
・Dedicated inner races are made to order.
