Water pump TVM serieselectricself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- handling
- Material
- stainless steel
- Voltage
- 380 V, 110 V
- Protection level
- IP55
- Other characteristics
- in-line, vertical
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 240 m³/h
(8,475.52001 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 300 m
(984'03" )- Power
Min.: 0.37 kW
(0.5 hp)Max.: 15 kW
(20.39 hp)- Fluid temperature
Min.: -15 °C
(5 °F)Max.: 120 °C
(248 °F)- Weight
Min.: 14 kg
(30.86 lb)Max.: 178 kg
(392.42 lb)
Description

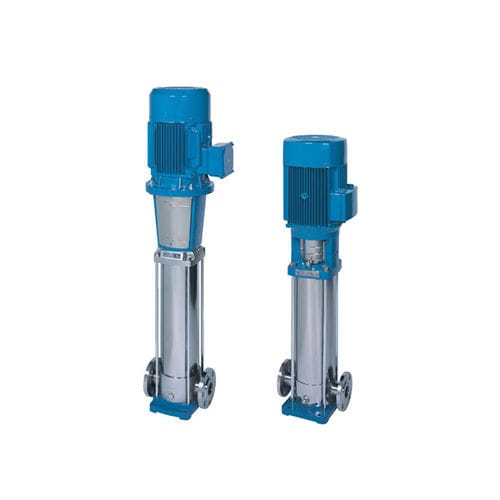

The TVM2-series is a vertical multistage centrifugal pump designed for handling freshwater. Since it is an in-line type, the pump occupies less installation space. The major wetted parts are made of 304 or 316 stainless steel. It is available in a wide selection, from 0.5 to 240 m3/h in the capacity range, and from 4 to 312 m in the pumping head range. The pump is suitable for irrigating agricultural farm, supplying or distributing industrial water, and circulating cold or warm water, etc.
Catalogs
![TVM2 [50Hz]_IA136-C](https://img.directindustry.com/pdf/repository_di/30418/tvm2-50hz-ia136-c-1066114_1m.jpg)
TVM2 [50Hz]_IA136-C
11 Pages
