- TSURUMI MANUFACTURING CO., LTD.
Water pump TVMS serieselectricself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- handling
- Material
- stainless steel
- Voltage
- 380 V
- Protection level
- IP55
- Other characteristics
- in-line, vertical
- Flow
Max.: 240 m³/h
(8,475.52001 ft³/h)Min.: 0.6 m³/h
(21.1888 ft³/h)- Head
Max.: 300 m
(984'03" )Min.: 0 m
(0'00" )- Power
Max.: 110 kW
(149.56 hp)Min.: 0.37 kW
(0.5 hp)- Fluid temperature
Max.: 120 °C
(248 °F)Min.: -15 °C
(5 °F)- Weight
Max.: 324 kg
(714.3 lb)Min.: 20 kg
(44.09 lb)
Description

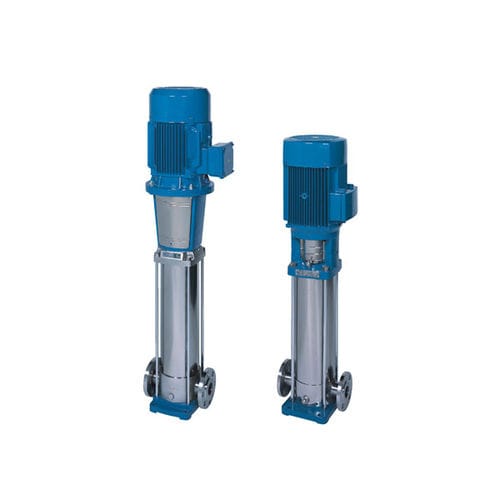

The TVMS2-series is a vertical multistage centrifugal pump designed for handling freshwater. Since it is an in-line type, the pump occupies less installation space. The major wetted parts are made of 304 or 316 stainless steel. It is available in a wide selection, from 0.6 to 240 m3/h in the capacity range, and from 6.2 to 270 m in the pumping head range. The pump is suitable for irrigating agricultural farm, supplying or distributing industrial water, and circulating cold or warm water, etc.
