- Hydraulics - Pneumatics
- Pump
- Centrifugal pump
- TSURUMI MANUFACTURING CO., LTD.
Centrifugal pump THMS serieswaterfor cooling waterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water, for cooling water
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- handling
- Material
- stainless steel
- Voltage
- 380 V
- Protection level
- IP55
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 30 m³/h
(1,059.44 ft³/h)- Pressure
10 bar
(145.038 psi)- Head
Min.: 0 m
(0'00" )Max.: 80 m
(262'05" )- Power
Min.: 0.55 kW
(0.75 hp)Max.: 5.5 kW
(7.48 hp)- Weight
Min.: 12 kg
(26.46 lb)Max.: 58 kg
(127.87 lb)
Description

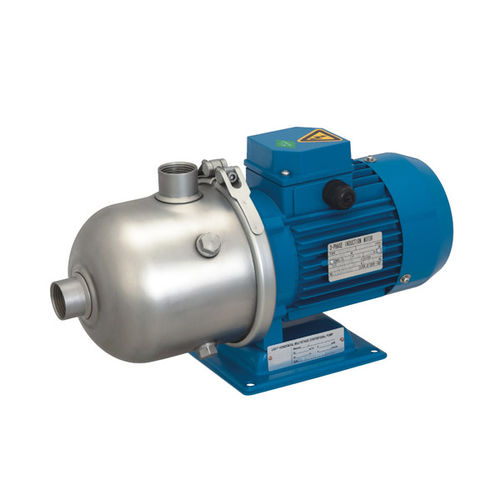

is a horizontal multistage centrifugal pump designed for handling freshwater. All the wetted parts are made of 304 stainless steel, which makes the pump ideal for the applications where contamination to the pumping water is undesired. The pump is suitable for cooling water systems, domestic water supply and boosting, aquaculture, general industrial services, and circulating cold or warm water, etc.
Catalogs
THM(S)_IA142-C
11 Pages
