Insert milling cutter TungForceFeed

shoulderanglehigh feed rate

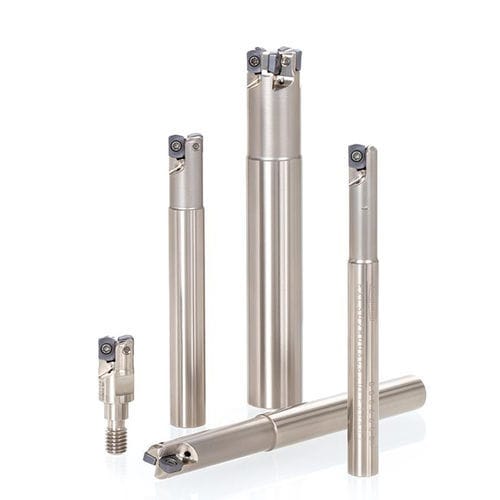

Small-diameter high-feed milling cutter with robust design for stability and efficiency Indexable high-feed milling cutter, available in as small as ø8 mm diameter, offers free cutting and effective chip control in a wide range of applications Features 1. Built to perform at higher machining conditions Strong and thick insert corner is designed to withstand fracturing force during high-feed operations. M2 screws reduce screw neck shears under high cutting forces. A larger screw enhances insert’s fixation and easy handling. 2. Positive inclination angle of the insert provides smooth chip evacuation The positive cutting edge position contributes to a controlled chip formation and easy chip evacuation when machining next to shoulder and slotting operation. 3. Designed with a small entry angle for chatter stability, TungForceFeed’s insert significantly improves efficiency and tool life even when machining in long reach areas
