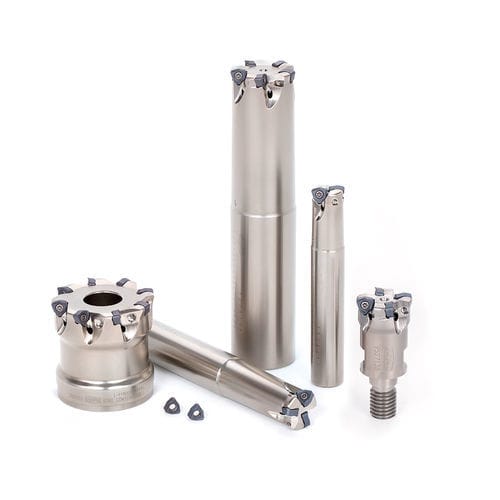

Insert milling cutter DoFeedTri

faceanglehigh feed rate

High feed milling cutters with six cutting edge inserts Featuring robust cutter design for high productivity m_546_t_01 High feed milling cutters with six cutting edge inserts Featuring robust cutter design for high productivity Applications & Features Applications High feedFace milling Slotting Pocketing Ramping Plunging Hole enlarging Features 1. Economical double-sided inserts with six cutting edges – 1.5 to 3 times greater number of cutting edges per insert compared with conventional high feed milling inserts. – Reduced cost per insert when machining stainless steels and difficult materials, where inserts demonstrate rapid wear. 2. Designed for tool reliability and stability – Robust cutting edge design forms an obtuse angle, eliminating insert fracture during machining. – A large contact face on the insert seat provides secure insert retention. 3. Excellent ramping capability – Longer inner cutting edge allows higher ramp-down capabilities to promote higher productivity. – Increased max ramping angles allow productivity boosts in linear and helical ramping operations.
