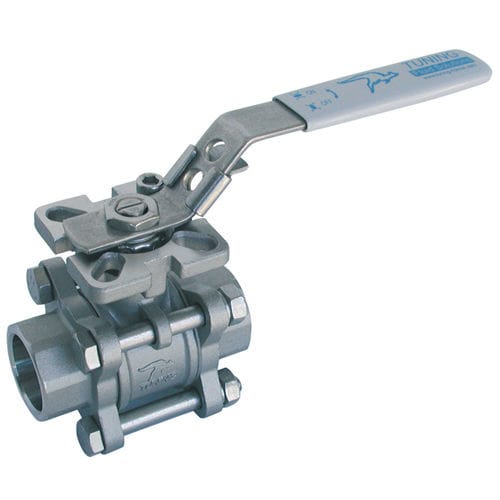

Welded valve 200931 series
balllever3-piece

welded valve
welded valve
welded valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever
Body
3-piece, welded, stainless steel
Applications
for industrial applications, shaft
Number of channels
2-way
Other characteristics
full-flow, with operating handle, with lockable toggle
DN

Min.: 8 mm
(0.315 in)

Max.: 100 mm
(3.937 in)

Pressure

25 bar, 64 bar
(362.6 psi, 928.2 psi)

Description

3-PIECES SW AISI316 ATEX BALL VALVE DIRECT MOUNT ISO PAD AND DIN SHAFT 2 way full bore ball valve - 3-pieces type - ATEX II2 G/D CT3 - PN64 - Body, ball and stem in stainless steel AISI316 - TFM1600 seats - FKM o-ring - To be welded SW end connections - 5211 ISO pad and DIN 3337 stem for direct assembly of actuator - Rotation via stainless steel handlever with locking device
