Digital heat meter QALCOSONIC E3

ultrasonicBACnetModbus

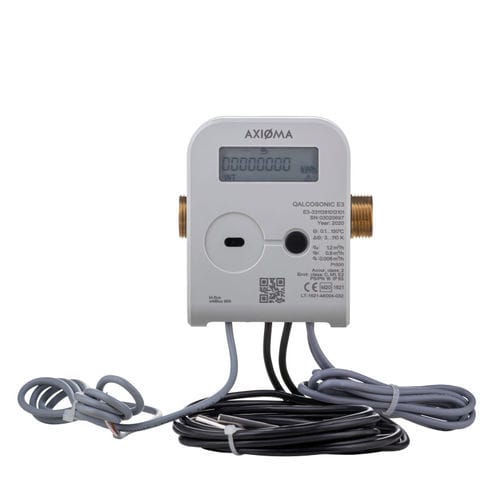

QALCOSONIC E3 ultrasonic heat meter is designed to measure the heat and cooling energy consumption, where data are recorded in two separate registers. The meter is used in the district heating objects (residential houses, companies and organizations, heat supply facilities, etc.). APPROVALS: • - MID • - EN1434 • - 2014/32/EU • - LoRaWAN ADVANTAGES: • - Flexible meter configurations. • - Metering parameters can be set by users: o - choose required measurement units; o - set the place of installation (return or supply); o - configure the impulse inputs and outputs; o - control computing modules. • - The heating and cooling energy is collected in different registers • - Possibility of annual or monthly reports • - Possibility to register maximum and average monthly parameter values • - Heat-transfer medium characteristics settings • - The electronic block may be mounted separately from the flow metering part • - The flow sensor can be installed in any position • - Measurement tariff option • - Communication modules: MBus, W-MBus 868 MHz (only on-board), ModBus, LoRa, BACnet
