Water filter cartridge FC series

activated carbonpolymethyl methacrylate304 stainless steel

Product description

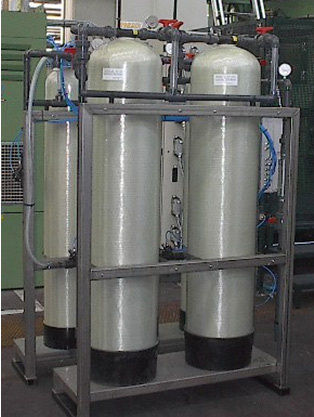

Compact modular water filtration unit using granular activated carbon for removal of chlorine, organic contaminants and taste/odour control. The unit is mounted on a corrosion‑resistant support frame and includes the components listed below.

• AISI 304 stainless steel support frame
• 30‑liter PVC buffer tank
• Stainless steel centrifugal electric pump
• Transparent plexiglass flow meter
• Granular activated carbon filter
• Electric pump control panel

Available models and nominal flow rates

• MODEL | FLOW RATE (NOMINAL L/h)
• FC 24/1 | 250–750
• FC 24/2 | 250–750
• FC 50/1 | 500–1500
• FC 50/2 | 500–1500
• FC 75/1 | 750–2000
• FC 75/2 | 750–2000
• FC 100/1 | 1000–3000
• FC 100/2 | 1000–3000
• FC 150/1 | 1500–4500
• FC 150/2 | 1500–4500
• FC 200/1 | 2000–6000
• FC 200/2 | 2000–6000

Notes

• The 2 series is equipped with a double activated carbon filter.
• Filters can be manufactured to customer specifications.

Technical specifications

• Support frame: AISI 304 stainless steel
• Buffer tank: 30‑liter PVC
• Electric pump: stainless steel centrifugal pump
• Flow meter: transparent plexiglass flow meter
• Filter medium: granular activated carbon
• Control: electric pump control panel
• Model family: FC series (nominal flow rates 250–6000 L/h)
• 2 series option: double activated carbon filter
• Customization: filters can be produced for specific requirements
