Water deionization system DEMI R series

Description

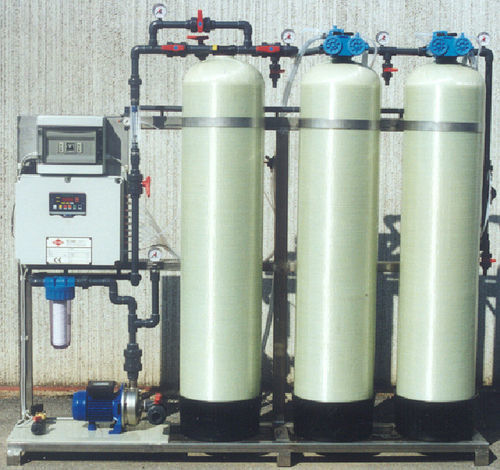

Compact regenerable demineralizer skid for industrial water treatment. Constructed on an AISI 304 stainless steel support frame and designed for continuous or intermittent supply. Includes components for effective organic and ionic contaminant removal and automatic resin regeneration for extended service life.

Templates / Capacity (Nominal LT./H)
TEMPLATE — CAPACITY (NOMINAL LT./H)
DEMI 24/2 R — 250-750
DEMI 40/2 R — 400-1200
DEMI 50/2 R — 500-1500
DEMI 75/2 R — 750-2000
DEMI 100/2 R — 1000-3000
DEMI 150/2 R — 1500-4500
DEMI 200/2 R — 2000-6000

DEMINERALISERS CAN BE CREATED FOR SPECIFIC REQUIREMENTS

Features / Technical specifications

• AISI 304 stainless steel support frame
• Stainless steel centrifugal pump
• Transparent plexiglass flow meter
• Granular activated carbon filter
• Filter with strong cation resin charge
• Filter with weak anion resin charge
• Hydropneumatic valves
• Cam control unit for automatic resin filter regeneration
• Conductivity meter
• Electrical control panel for the installed equipment
• Available templates and nominal capacities: DEMI 24/2 R (250-750 LT./H), DEMI 40/2 R (400-1200 LT./H), DEMI 50/2 R (500-1500 LT./H), DEMI 75/2 R (750-2000 LT./H), DEMI 100/2 R (1000-3000 LT./H), DEMI 150/2 R (1500-4500 LT./H), DEMI 200/2 R (2000-6000 LT./H)
