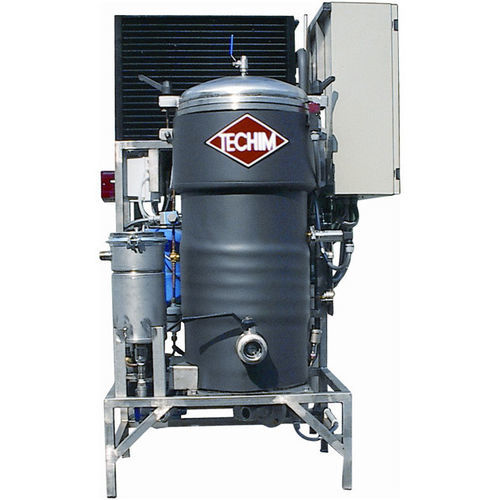

Solvent distillation unit

automaticvacuum

Description
Vacuum solvent distillers concentrate and recover solvents by evaporating the liquid under controlled vacuum in a liquid‑ring system. The evaporator body is manufactured in AISI 316L to ensure chemical compatibility with a wide range of solvents. Heating is provided by dedicated electrical resistors and vapors are condensed through circulation of a refrigerant liquid. The unit features automatic loading and a mechanical floating sphere level to maintain a constant liquid level, enabling continuous automatic operation for standard cycles. Superconcentration and final discharge are performed manually according to process needs.

Key features

• Vacuum‑controlled evaporation using a liquid‑ring system
• Evaporator body in AISI 316L for solvent resistance
• Heating by dedicated electrical resistors
• Vapour condensation via refrigerant liquid circulation
• Continuous, automatic discharge of distilled solvent
• Automatic loading with mechanical floating sphere level control
• Automatic, operator‑free operation for normal cycles
• Manual superconcentration and discharge as required by process

Technical specifications

• Evaporation: vacuum‑controlled cylinder with liquid‑ring system
• Evaporator material: AISI 316L
• Heating: electrical resistors
• Condensation: refrigerant liquid circulation
• Level control: mechanical floating sphere
• Operation mode: automatic loading and continuous discharge; manual superconcentration/discharge
