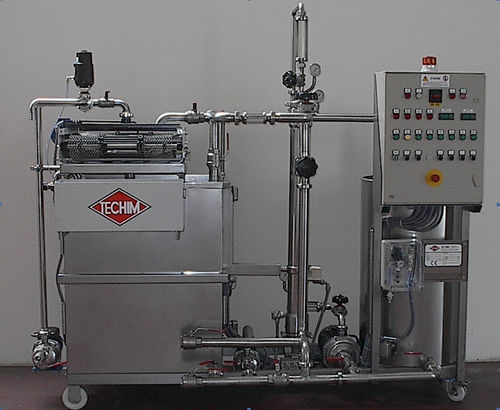

Coalescing ultra-filtration unit VF series

membranepaper filterby decanting

Product overview
The VF series is designed to keep the degreasing solution constantly clean by continuously removing contaminants that would otherwise accumulate in the bath, compromising its effectiveness.

Process phases
Phase A: Sedimentation
During sedimentation, the sludge typical of degreasing or tumbling processes is collected at the bottom of a settling tank.

Phase B: Filtration on a self-cleaning paper filter
The solution, clarified by the sedimentation, moves on to the filtration phase through a self-cleaning paper filter, which retains solid particles (shavings, filings, and non-colloidal suspensions).

Phase C: Oil Removal
The filtered solution then passes through the coalescing section to separate the free oil.

Phase D: Ultrafiltration
Ultrafiltration allows only water and detergent to pass through, while blocking oily emulsion particles, solid particles, and bacteria.

Advantages

• Qualitative: keeping the solution constantly clean achieves maximum roughing results
• Managerial: periodic bath replacements are avoided
• Environmental: as the solution is constantly clean, there is no need for disposal or purification
• Economical: detergent consumption undergoes a drastic reduction

Capacity / Templates (table)
TEMPLATE | CAPACITY Lt/h | INSTALLED POWER kW | ABSORBED POWER kW | SIZE mm
VF 35 | 35 | 5 | 2 | 1400×2500×2200
VF 100 | 100 | 7 | 3.5 | 1500×2800×2300
VF 200 | 200 | 9 | 4.5 | 1600×3000×2400
VF 300 | 300 | 11 | 6 | 1650×3000×2500

Technical characteristics / specifications

• Series: VF series
• Function: continuous ultrafiltration for degreasing bath regeneration (sedimentation, paper filtration, oil coalescing, ultrafiltration)
• Ultrafiltration capability: allows water and detergent to pass; retains oily emulsion particles, solid particles and bacteria
• Benefits: reduces detergent consumption, avoids periodic bath replacement, minimizes disposal and purification needs
• Available templates/models and main specs: VF 35 (35 Lt/h, installed power 5 kW, absorbed power 2 kW, size 1400×2500×2200 mm); VF 100 (100 Lt/h, 7 kW installed, 3.5 kW absorbed, 1500×2800×2300 mm); VF 200 (200 Lt/h, 9 kW installed, 4.5 kW absorbed, 1600×3000×2400 mm); VF 300 (300 Lt/h, 11 kW installed, 6 kW absorbed, 1650×3000×2500 mm)
