- Piston flow meter
- UNIVERSAL FLOW MONITORS

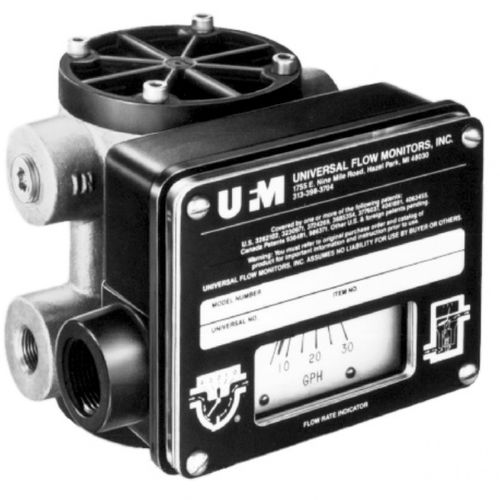

Variable-area flow meter LLpistonvolumefor oil
Add to favorites
Compare this product
Characteristics
- Technology
- variable-area, piston
- Type
- volume
- Fluid
- for oil
- Pipe diameter
- DN25 - 1", DN15 - 1/2", DN20 - 3/4", DN10 - 3/8", DN8 - 1/4"
- Installation
- in-line
- Volumetric flow rate
Max.: 20 us gal/min
(75.7082 l/min)Min.: 0.3 us gal/min
(1.1356 l/min)- Process temperature
93 °C
(199.4 °F)- Process pressure
Max.: 1,500 psi
Min.: 150 psi
- Precision
5 %
- Repeatibility
1 %
Description
The LL series has the following characteristics and/or options:
Less sensitive to viscosity change
Mechanical pointer and scale readout
Optimized for circulating lubricants with viscosities between 20 - 300 Centistokes
Stands up to tough environments
Field tested in auto plants, power plants, steel mills and ore processing mills
No up or downstream pipe length requirements
Catalogs
Other UNIVERSAL FLOW MONITORS products
Piston VA Flowmeters for Offset Piping Requirements
