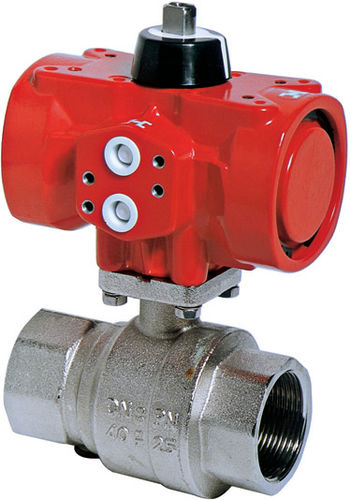

Ball valve 215, 216pneumatically-operatedcontrolbrass
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- pneumatically-operated
- Function
- control
- Body
- brass
- Number of channels
- 2-way
- DN
Max.: 1.25 in
Min.: 0.25 in
- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -10 °C
(14 °F)
Description
Brass valve
FPM shaft “o-ring”
PTFE ball seat
BSP threaded end connections
1/4” to 1”1/4 = NP40
1”1/2 to 4”= NP25
Working pressure: 16 Bar*
Fluid temperature: -10°C +120°C
Actuator temperature: 0°C +90°C
Actuator air: 6 Bar*
