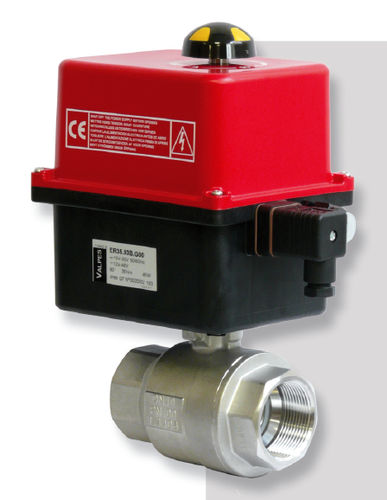

Ball valve 211, 213electrically-actuatedfor controlstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- for control
- Material
- stainless steel
- Number of channels
- 2-way
- Other characteristics
- automatic
- DN
Min.: 8 mm
(0.315 in)Max.: 50 mm
(1.969 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 55 °C
(131 °F)
Description
Sainless steel valve, FPM O’Ring, PTFE+15% GF seats
BSP threaded end connection
PN100
Working pressure: 16 Bar*
Fluid temperature: -20°C to +150°C**
Actuator temperature: -10°C to +55°C (Failsafe : -10°C to +40°C)
Duty rating : 50% (ER PLUS) - 30% (ER PREMIER) (CEI34)
Enclosure: IP66 (ER PLUS) or IP65 (ER PREMIER).
Electric connections: 1x ISO M20 and 1xconnector DIN43650 3P+T
