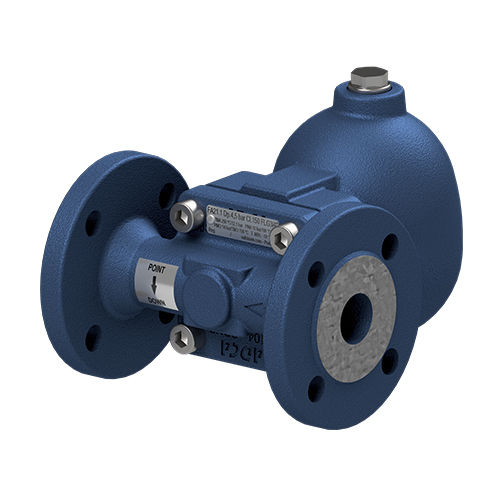

Float trap FA21.1 series
aircondensategas

Float trap - FA21.1 series - VALSTEAM ADCA Engineering S.A. - air / condensate / gas
Float trap - FA21.1 series - VALSTEAM ADCA Engineering S.A. - air / condensate / gas
Float trap - FA21.1 series - VALSTEAM ADCA Engineering S.A. - air / condensate / gas - image - 2
Float trap - FA21.1 series - VALSTEAM ADCA Engineering S.A. - air / condensate / gas - image - 3
Add to favorites
Compare this product

Characteristics

Medium
condensate, gas, air
Operational mode
automatic
Type
float
Operating pressure

4.5 bar, 10 bar, 14 bar
(65.27 psi, 145.04 psi, 203.05 psi)

Discharge capacity

Max.: 1,366 kg/h
(3,012 lb/h)

Min.: 215 kg/h
(474 lb/h)

Operating temperature

100 °C, 150 °C, 200 °C, 250 °C
(212 °F, 302 °F, 392 °F, 482 °F)

Description

The FA21.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains. MAIN FEATURES Modulating discharge. Unaffected by sudden or wide load and pressure variations. Flow direction can be easily changed by repositioning the body in relation to the mechanism and cover. Metal to metal sealing. Equalizing (vent) and drain connections. BDV – Blowdown valve. AFZ – Anti-freeze device. FLL – Float lifting lever. Compressed air and other non corrosive gases compatible with the construction. CONNECTIONS: Female threaded ISO 7 Rp or NPT Flanged EN 1092-1/-2 PN 16 Flanged ASME B16.42/B16.5 Class 150

Catalogs

FA21.1
FA21.1
5 Pages
