Air trap FA35.3 series
condensategasautomatic

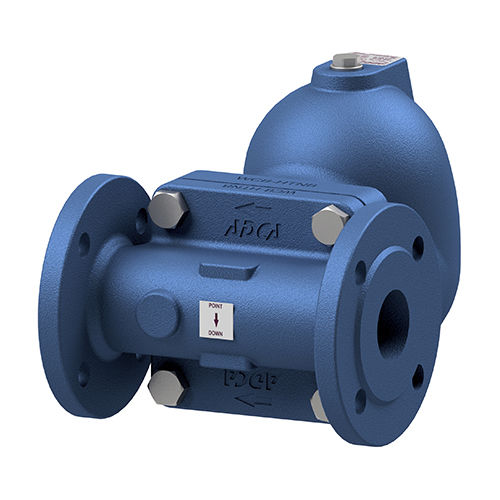

Air trap - FA35.3 series - VALSTEAM ADCA Engineering S.A. - condensate / gas / automatic
Air trap - FA35.3 series - VALSTEAM ADCA Engineering S.A. - condensate / gas / automatic
Air trap - FA35.3 series - VALSTEAM ADCA Engineering S.A. - condensate / gas / automatic - image - 2
Add to favorites
Compare this product

Characteristics

Medium
condensate, gas, air
Operational mode
automatic
Type
float
Operating pressure

Max.: 40 bar
(580.15 psi)

Min.: 10.2 bar
(147.94 psi)

Discharge capacity

Max.: 2,990 kg/h
(6,592 lb/h)

Min.: 175 kg/h
(386 lb/h)

Operating temperature

100 °C, 200 °C, 250 °C, 300 °C
(212 °F, 392 °F, 482 °F, 572 °F)

Description

The FA35.3 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains. Modulating discharge. Unaffected by sudden or wide load and pressure variations. Flow direction can be easily changed by repositioning the body in relation to the mechanism and cover. Equalizing (vent) and drain connections. BDV – Blowdown valve. AFZ – Anti-freeze device. FLL – Float lifting lever. Compressed air and other non corrosive gases compatible with the construction. Female threaded ISO 7 Rp or NPT. Flanged EN 1092-1 PN 40. Flanged ASME B16.5 Class 150 or 300. Socket weld (SW) ASME B16.11.

Catalogs

FA35.3
FA35.3
4 Pages
