Valve with bellows seal VF40
globewith handwheelstop

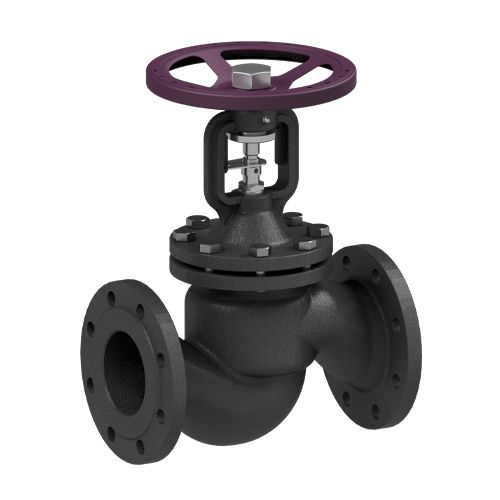

Valve with bellows seal - VF40 - VALSTEAM ADCA Engineering S.A. - globe / with handwheel / stop
Valve with bellows seal - VF40 - VALSTEAM ADCA Engineering S.A. - globe / with handwheel / stop
Add to favorites
Compare this product

Characteristics

Type
globe
Operation
with handwheel
Function
stop
Media
for oil, for gas, for steam
Body
in-line, double
Applications
for industrial applications
Material
stainless steel, carbon steel
Other characteristics
with bellows seal, thermal
DN

Max.: 150 mm
(5.906 in)

Min.: 15 mm
(0.591 in)

Pressure

Max.: 40 bar
(580.2 psi)

Min.: 27.8 bar
(403.2 psi)

Temperature

Max.: 300 °C
(572 °F)

Min.: -10 °C
(14 °F)

Flow rate

Max.: 364 m³/h
(12,854.54 ft³/h)

Min.: 4.3 m³/h
(151.85 ft³/h)

Description

The VF40 is a series of maintenance free inline stop valves designed with double wall bellow sealing, secondary safety packing and nonrising handwheel. They are specially recommended for steam, gas, liquid, condensate, thermal oil and water applications. Maintenance free design. High durability sealing via double wall bellows. Secondary safety packing. Non-rising handwheel. External stem thread. Parabolic plug for throttling applications. Group 2 fluids compatible with the construction. CONNECTIONS: Flanged EN PN40
