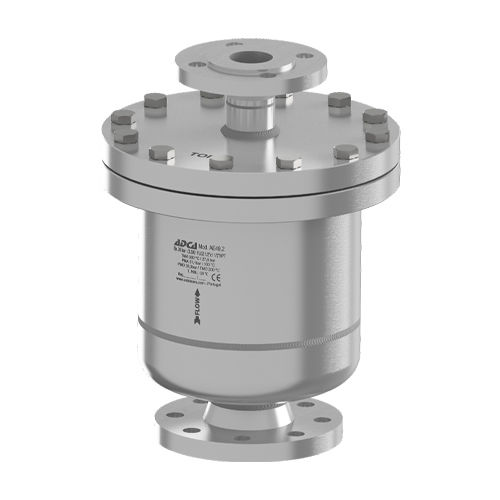

Gas vent AE49.2 series

automatic

The AE49.2 range of high capacity automatic vents are designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling high loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice. These ball float type vents are manufactured in stainless steel, available with various soft sealing options, and can be used in combination with other air elimination and separation systems or directly applied at high points in the pipelines. Suitable for start-up and continuous operation with one single orifice. High capacity. Allow fast and easy inline maintenance. Corrosion resistant internal parts. No balancing pipe required. Various soft sealing options. Cold, hot and superheated water or other liquids compatible with the construction. CONNECTIONS: Female threaded ISO 7 Rp or NPT Flanged EN 1092-1 PN 40 Flanged ASME B16.5 Class 150 or 300 Socket weld (SW) ASME 16.11
