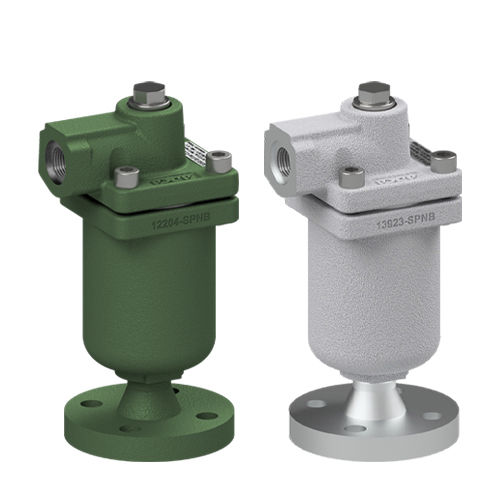

Air vent AE50 series

gaswaterautomatic

The AE50 range of automatic vents are designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice. These ball float type vents are manufactured in carbon steel or stainless steel, available with soft sealing, and can be used in combination with other air elimination and separation systems or directly applied at high points in the pipelines. Suitable for start-up and continuous operation with one single orifice. Allow fast and easy inline maintenance. Corrosion resistant internal parts. No balancing pipe required. Different soft sealing options. Metal to metal sealing. Cold, hot and superheated water or other liquids compatible with the construction. CONNECTIONS: Female threaded ISO 7 Rp or NPT Flanged EN 1092-1 PN 40 Flanged ASME B16.5 Class 150 or 300
