Disc check valve flangewaferscrew-in
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Body
- flange, wafer, screw-in
- Material
- cast iron
- Valve plug seal material
- EPDM
- Other characteristics
- standard, seat
- DN
Max.: 1,400 mm
(55.118 in)Min.: 250 mm
(9.843 in)- Pressure
Max.: 2.5 bar
(36.3 psi)Min.: 1 bar
(14.5 psi)
Description

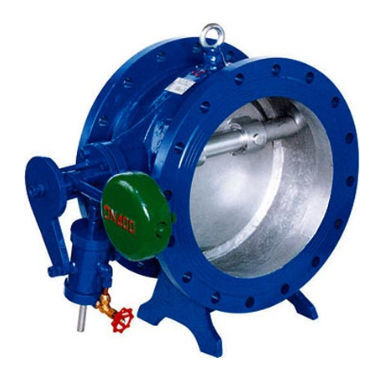

Tilting Disc Check Valve
Body: Ductile Iron, Cast Iron
Disc: Ductile Iron, Cast Iron
Shaft: SS420, SS431
Body Seat: SS304
Disc Seal Ring: EPDM, NBR
Retainer Ring: Carbon Steel+ss304
Shaft Bearing: SS304
O Ring: EPDM
Pin: SS420
End Cover: Carbon Steel+Epoxy
Design and Manufacture Standard: BS EN12334
Face To Face Standard: EN558-1, DIN3202 F4
Flange Dimension: EN1092, DIN250
