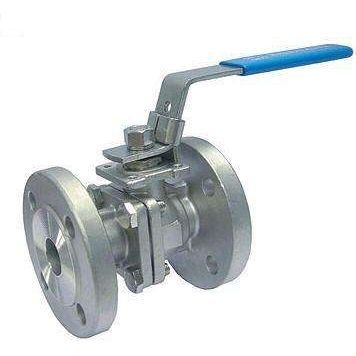

Cast steel valve balllevercontrol
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- control
- Body
- flange, seat, stainless steel, carbon steel, cast iron, PTFE, cast steel, iron
- Applications
- flange, flange
- Other characteristics
- ISO, DIN
- DN
Max.: 250 mm
(9.843 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar, 25 bar, 40 bar, 63 bar
(232.1 psi, 362.6 psi, 580.2 psi, 913.7 psi)
Description
Design & manufacture : EN12516, DIN3357
Face to Face: DIN 3202, EN558-1, DN15 to DN100 (F4,F14), DN125 to DN250 (F5,F15)
Flange End : EN1092-2, ISO7005-2
Mounting Pad: ISO 5211
Pressure testing: EN1266, ISO 5208, DIN 3230
Specifications:
Body: Cast Iron, Cast Steel, Stainless Steel
Ball: Stainless steel 304 , 316
Seat & Gasket: PTFE, RPTFE
Bolt & Nut : Steel
Stem: Stainless steel 304 , 316
Handle: Ductile Iron, Carbon Steel, Stainless Steel
