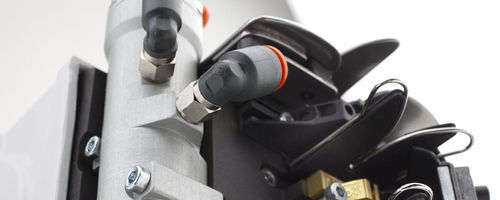

Automatic splicing machine

for fabriccontinuous

Overview
Yarn joining technology is presented as a key factor in the winding and other yarn-processing steps (winding, assembling, twisting, reeling, warping, knitting, etc.). Joins are required each time yarns break or when a tail-to-top connection between bobbins is needed, so that production machines can continue with a continuous process without stops.

Background and technology
Historically connections were made by hand knots, then mechanical knotting devices were developed to produce consistent knots. Splicing technology was later developed and integrated into the textile industry; it mainly uses accurately controlled air blasts for end preparation and fiber intermingling and is widely adopted in winding.

MESDAN positioning and offered joining means

• MESDAN is recognized as a worldwide leader in the production of joining devices for the textile industry and offers a complete range of splicers and knotters in both automatic and hand-operated versions.
• Splicing solutions are available working with four different joining means:

• JOINTAIR (A) - air splicer
• MOISTAIR (M) - moist air splicer
• AQUASPLICER (W) - wet splicer
• HOT JOINTAIR (H) - heated air splicer

Applications and compatibility (table)
Splicer type | Application | JOINTAIR (A) | MOISTAIR (M) | AQUASPLICER (W) | HOT JOINTAIR (H)
Hand operated - Handheld | ✓ | | |
Hand operated - ATS | ✓ | ✓ | ✓ | ✓
Hand operated - Trolley | ✓ | ✓ | ✓ |
Automatic - Automatic winders | ✓ | ✓ | ✓ | ✓

Product categories and solutions

• Splicers for automatic winders (e.g. Savio and Qingdao Hongda automatic winders)
• Splicer solutions for other textile applications (hand-operated splicers for manual machines)
• A.T.S. system - a complete system that enables a yarn splicer to be operated and positioned at any desired area, leaving both operators' hands free
• Knotters - a complete range of knotting devices in manual and automatic versions, covering the main knot configurations (Winders, Weavers, Fishermans)
• Splicers maintenance tools - tools and consumables for maintenance and setting of joining devices

Characteristics / technical specifications

• Joining technologies available: JOINTAIR (A), MOISTAIR (M), AQUASPLICER (W), HOT JOINTAIR (H).
• Modes of use: hand-operated (handheld, ATS, trolley) and fully automatic for automatic winders.
• Applications: winding, assembling, twisting, reeling, warping, knitting and other yarn-processing steps requiring continuous yarn feeds.
• A.T.S. system: enables positioning and operation of splicer with both operators' hands free.
• Splicers and knotters designed to join yarns of different nature (fiber type, structure, spinning system).
